720S Chain F228 Attachment
720S Chain F228 Attachment

Alternative Views:


Availability:: Normally In-Stock
Product Code: 720S-F22-8-ATTACHMENT
Contact Us For Price & Availability

Description Technical Specifications

720S F228 Attachment

This F228 attachment is manufactured for 720S chain, Ultimate Suppliers offers 720S chain with F228 attachments in any configuration needed. We offer some of the best pricing in the industry and have teamed up with some of the industries most experienced personal to supply you with exactly what you need, when you need it, at very competitive prices. Call us or email us for inquires and experience a refreshing difference in service.

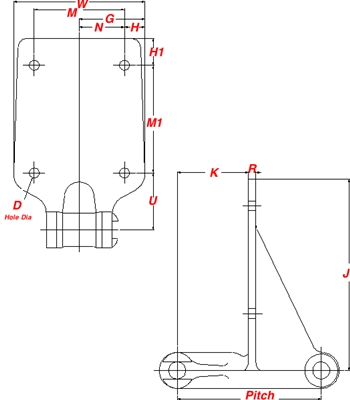

Dimensions:

  • Part #: 720S-F228-Attachment
  • Pitch: 6.00
  • Bolt Diameter (D): 0.38"
  • Hole Diameter (D): 0.44"
  • Dimension (J): 8.00"
  • Dimension (K): 3.00"
  • Dimension (M): 3.75"
  • Dimension (M1): 4.50"
  • Dimension (T): 0.31"
  • Dimension (U): 2.38"
  • Dimension (W): 5.50"
  • Average Weight: 14.6 lb/ft

Phone: (321) 689-6118
Email: [email protected]
Information
    • High Quality
    • Can Be Assembled to Any Configuration Needed
    • Made For: 720S Chain
    • Contact Ultimate Suppliers For Inquires
    • Phone: (321) 689-6118
    • Email: [email protected]
