720 Chain AM116 Attachment
720 Chain AM116 Attachment

Alternative Views:


Availability:: Normally In-Stock
Product Code: 720-AM116-ATTACHMENT
Contact Us For Price & Availability

Description Technical Specifications

720 AM116 Attachment

This AM116 attachment is manufactured for 720 chain, Ultimate Suppliers offers 720 chain with AM116 attachments in any configuration needed. We offer some of the best pricing in the industry and have teamed up with some of the industries most experienced personal to supply you with exactly what you need, when you need it, at very competitive prices. Call us or email us for inquires and experience a refreshing difference in service.

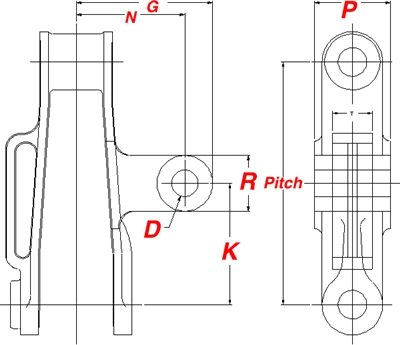

Dimensions:


  • Part #: 720-AM116-Attachment
  • Pitch: 6.000"
  • Bolt Diameter (D): 0.62"
  • Hole Diameter (D): 0.66"
  • Dimension (G): 3.38"
  • Dimension (K): 3.00"
  • Dimension (N): 2.75"
  • Dimension (P): 1.94"
  • Dimension (R): 1.38"
  • Dimension (T): 1.00"
  • Average Weight: 7.8 lb/ft


Phone: (321) 689-6118
Email: [email protected]
Information
    • High Quality
    • Can Be Assembled to Any Configuration Needed
    • Made For: 720 Chain
    • Contact Ultimate Suppliers For Inquires
    • Phone: (321) 689-6118
    • Email: [email protected]

Accessories
720 Pintle Chain - 10ft Box
720 Pintle Chain
